Mathematical notation and terminology¶

Sets¶

Symbol	Reads	Explanation	Example
$\{ \ \dots \}$	a set	The elements of the set are written inside the braces.	$\{1,2,3\}$ denotes the set consisting of the numbers 1, 2 and 3.
${ \dots	\dots }$	The set of all $\dots$ satisfying the condition $\dots$.	This denotes the set consisting of all objects satisfiying a certain condition.
$\in$	is an element of	If $M$ is a set the expression $x \in M$ means that $x$ is a member of $M$.	$\diamondsuit \in \{ \diamondsuit, \heartsuit, \spadesuit, \clubsuit \}$
$\notin$	is not an element of	If $M$ is a set the expression $x \in M$ means that $x$ is a member of $M$.	$\diamondsuit \notin \{ \heartsuit, \spadesuit, \clubsuit \}$

$f : X \to Y$	$f$ from $X$ to $Y$	A function $f$ from a set $X$ to another set $Y$.	$f : \{ \text{Monday}, \dots, \text{Sunday} \} \to \{ \text{true, false} \}$ is some function that assigns to any weekday either true or false. For example, $f$ could indicate whether I go to school that day.
$\to$	to	The regular arrow is the symbol for a function.
$\mapsto$	maps to	$x \mapsto y$ indicates that a particular element $x \in X$ is sent to (or “mapped to”) the element $y \in Y$.	$\text{Sunday} \mapsto \text{false}$
$X \times Y$	The product of two sets $X$ and $Y$.	The product consists of pairs $(x, y)$, where $x \in X$ and $y \in Y$.	$\{0, 1\} \times \{ 0, 1\} = \{(0,0), (0, 1), (1,0), (1,1)\}$.
$X \subset Y$	subset	$X$ is a subset of $Y$ if every element of $X$ is also an element of $Y$.	$\{1, 2\} \subset \{0, 1, 2\}$
$X \subsetneq Y$	proper subset	$X$ is a proper subset of $Y$ if $X \subset Y$ but $X \ne Y$	$\{1, 2\} \subsetneq \{0, 1, 2\}$
$X \cap Y$	intersection of $X$ and $Y$	The intersection consists of those elements that are contained in $X$ and in $Y$. $\{0, 1\} \cap \{-1, 0\} = \{ 0 \}$
$X \cup Y$	union of $X$ and $Y$	The union consists of those elements that are contained in $X$ or in $Y$. $\{0, 1\} \cap \{-1, 0\} = \{-1, 0, 1 \}$
$g \circ f$	composition	If $f : X \to Y$ and $g : Y \to Z$ are two functions, then $g \circ f: X \to Z$ is the function sending $x \in X$ to $g(f(x))$.

Logic¶

Symbol	Reads	Explanation	Example
$\Rightarrow$	Implies	If $A$ and $B$ are two (mathematical) statements, then “$A \Rightarrow B$” means that if $A$ holds then $B$ also holds.	$x \ge 1 \Rightarrow x^2 \ge 1$
$\Leftrightarrow$	Equivalent	If $A$ and $B$ are two mathematical statements, then “$A \Leftrightarrow B$” is an abbreviation for $A \Rightarrow B$ and (at the same time) $B \Rightarrow A$.	$x \ge 0$ $\Leftrightarrow$ $x + 1 \ge 1$
$:=$	is defined to be		$x := 2$ means that we define the variable $x$ to take the value 2

Numbers and arithmetic¶

Symbol	Reads	Explanation	Example
${{\bf Z}}$		The set of all integers.	$-34, -1, 0, 1, 2, 18, \dots \in {{\bf Z}}$, $\frac 3 4 \notin {{\bf Z}}$
${{\bf Q}}$		The set of all rational numbers.	$\frac {-3}{16}, -3.3, -1, 0, 2.4, \frac 3 4 \in {{\bf Q}}$, $\sqrt 3 \notin {{\bf Q}}$
${\bf R}$		The set of all real numbers.	0, 1, $-1$, $\frac 1 2$, $\sqrt 3$, $\pi$, $e \in {\bf R}$
$\sum_{e=1}^n a_e$	Sum	This is an abbreviation for the sum of the $a_e$, where $e$ runs from 1 to $n$. (Here $a_e$ can be any expression depending on $e$.) It can also be written as $a_1 + a_2 + \dots + a_e$.	$\sum_{e=1}^3 e^2 = 1^2 + 2^2 + 3^2 = 14$.

Trigonometric functions¶

Angles can be measured in degrees or in radians. These are converted as follows:

angle	radian
(in degree)	(no unit)
$180^\circ$	$\pi$
$90^\circ$	$\frac \pi 2$
$\alpha$	$\frac{\pi}{180} \alpha$
$\frac {180}\pi r$	$r$

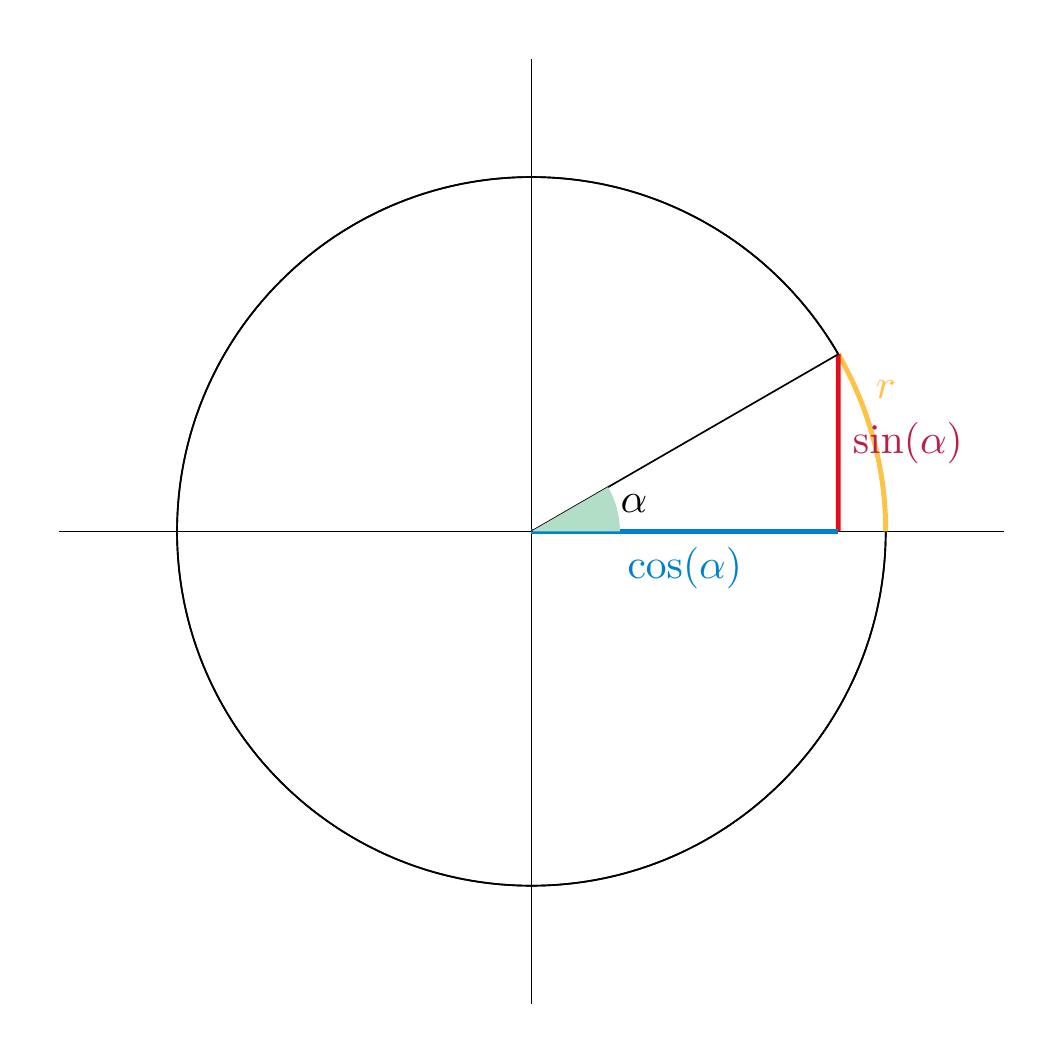

Geometrically, given an angle $\alpha$ (between 0 and $360^\circ$ as in the picture below), the radian is the length of the yellow circle segment as shown:

A rotation by a positive number is counter-clockwise; conversely negative numbers correspond to a clockwise rotation. For example, a rotation by $\frac \pi 2$ is a counter-clockwise rotation by $90^\circ$. A rotation by $-\frac \pi 4$ is a clockwise rotation by $45^\circ$.

Given any radian $r$, the ray that has an angle $r$ between itself and the positive $x$-axis meets the circle with radius 1 and mid-point $(0,0)$ in exactly one point $p$. The trigonometric functions $\sin$ and $\cos$ are defined to be the coordinates of that point:

\[ p = (\cos(r), \sin (r)). \]

For example, we have the following values

$r$	0	$\pi/6$ (30°)	$\pi/4$ (45°)	$\pi/3$ (60°)	$\pi/2$ (90°)	$\dots$
$\sin(r)$	0	$\frac 12$	$\sqrt 2$	$\frac {\sqrt 3}2$	1	$\dots$
$\cos(r)$	1	$\frac {\sqrt 3} 2$	$\sqrt 2$	$\frac 12$	0	$\dots$
